ModernWormfare — Async PvP Test Results

Overview

Date: 2026-07-22

Mode: Async (turn-batch PvP) — client records a whole turn, server simulates deterministically, broadcasts a replay, persists the turn

Players: net (host, Cow race, admin) vs guest (Rocket race)

Map: Islands

Server: dev server ./dev.sh on http://localhost:5080 (no sudo)

Tester: automated via Playwright (headless Chromium, 2 browser tabs)

Game ID: 8e05ad7a-5ee0-4737-9394-b440597e1a57

Match flow exercised

1. Lobby (create + join)→ 2. Loadout (buy + ready)→ 3. Begin Match→ 4. Record turn→ 5. Submit batch→ 6. Replay→ 7. Undo / Commit→ next unit

Screenshots

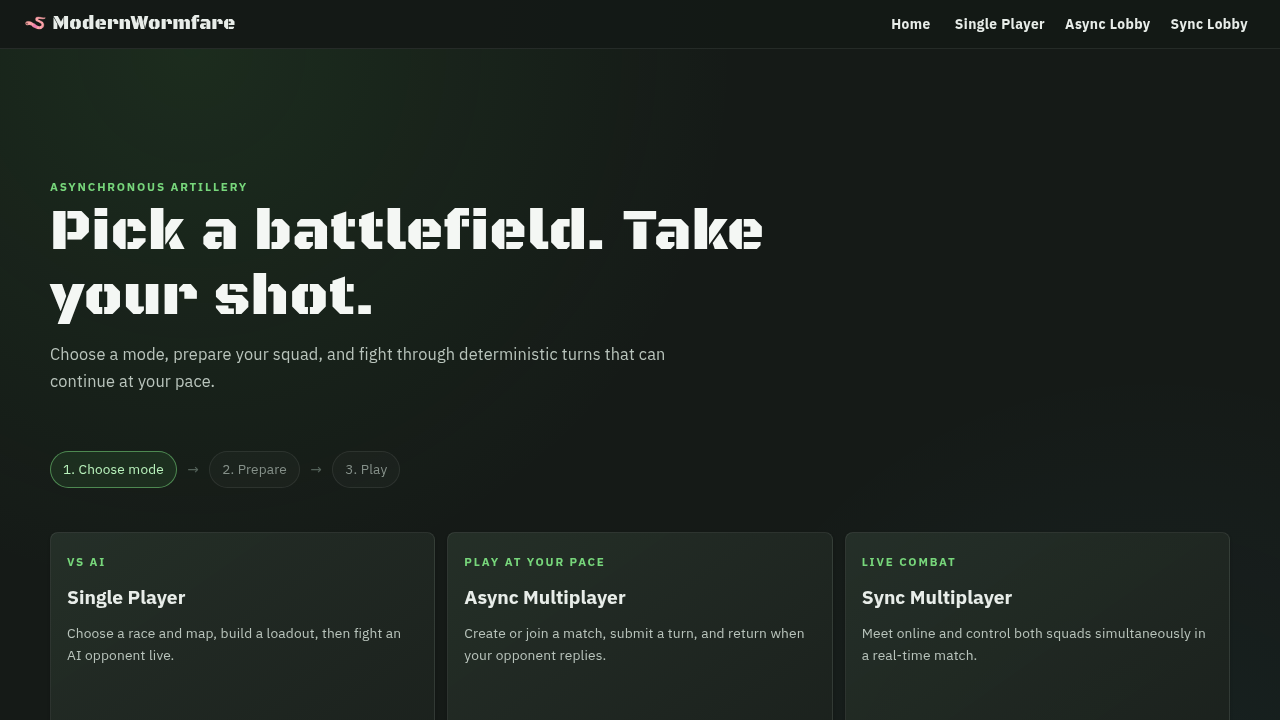

1. Home — three entry points (Single Player, Async, Sync)

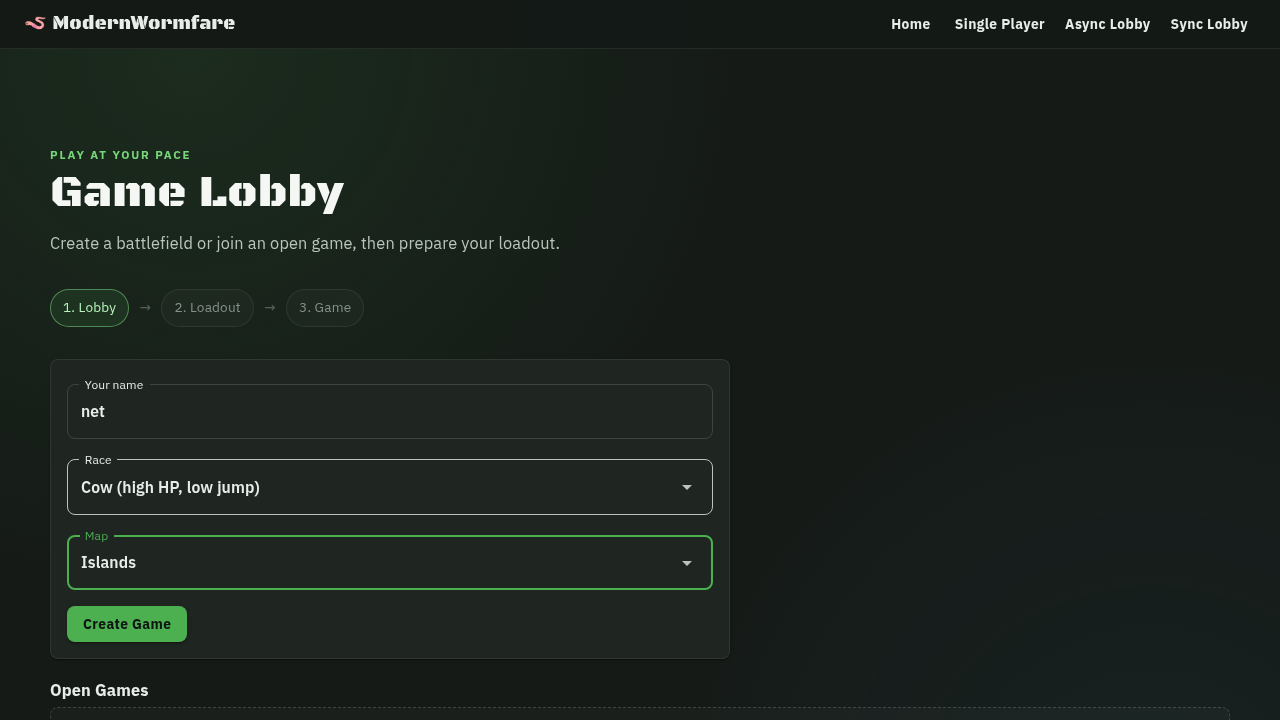

Lobby create — 2. Host creates an Async game (name: net, Cow, Islands)

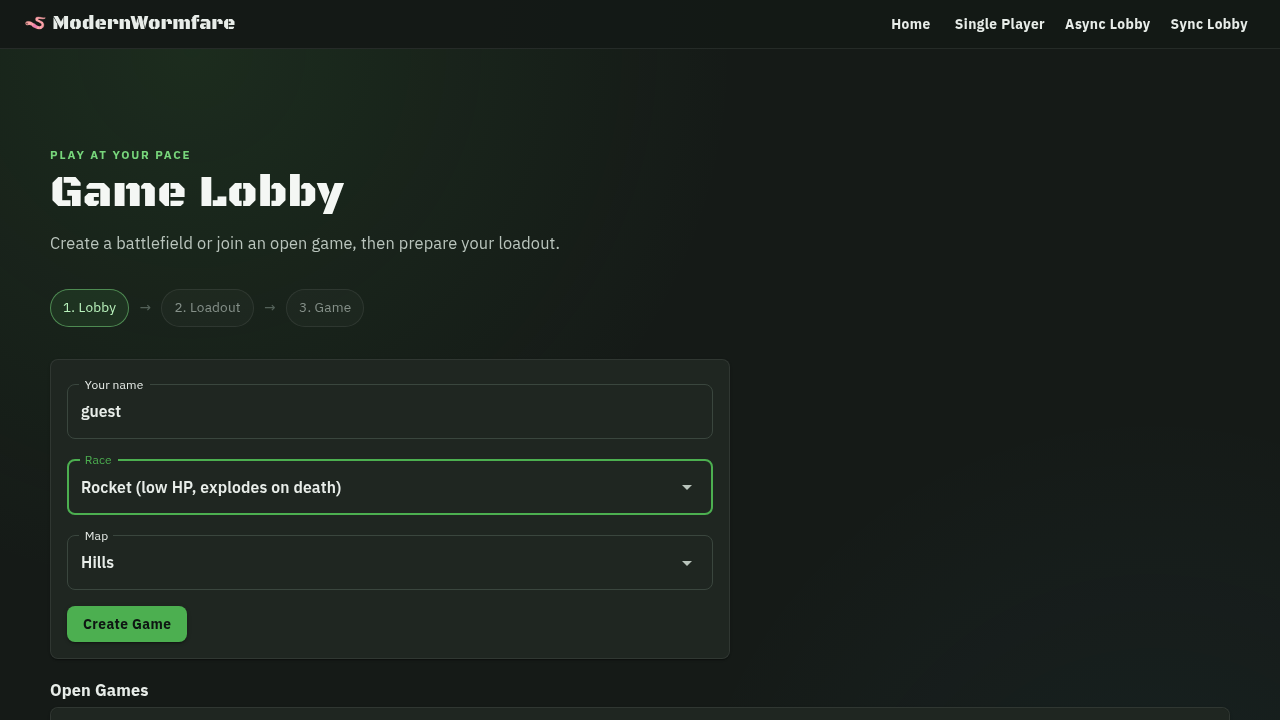

Lobby join — 3. Second player (guest, Rocket) joins the open game

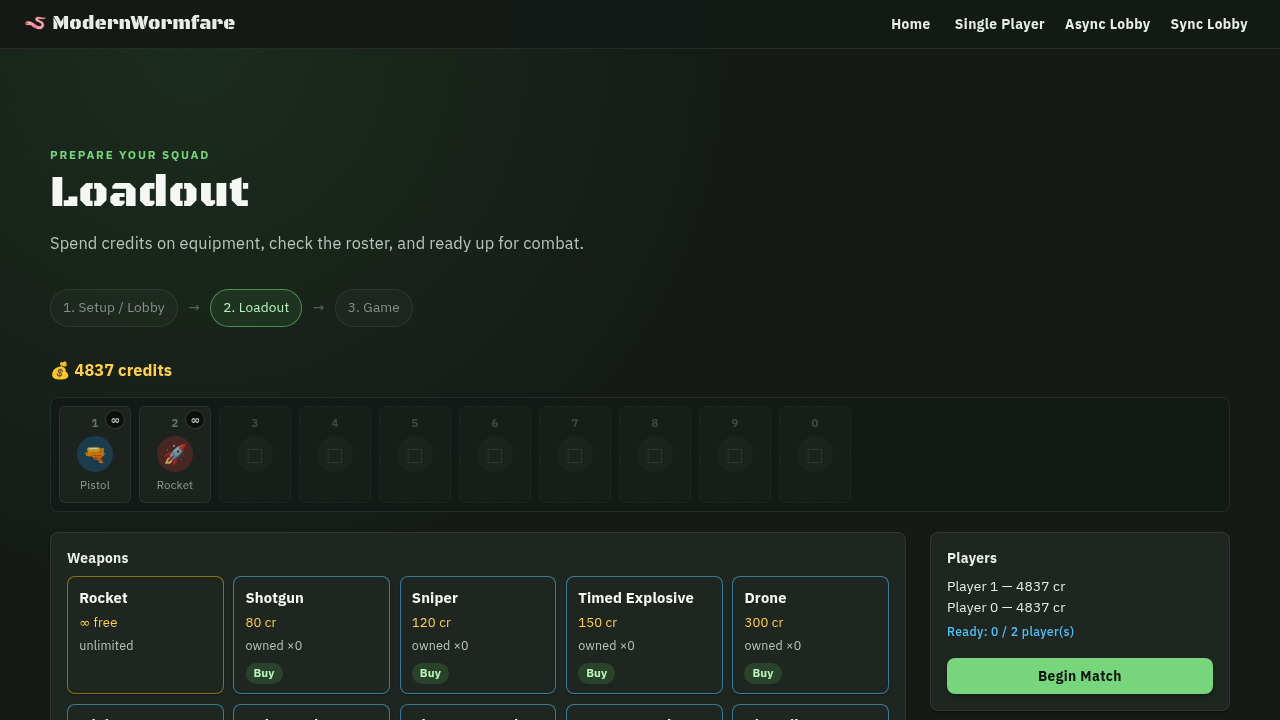

Loadout host — 4. Host loadout — Shotgun + Cluster Grenade + Ninja Rope (4597cr)

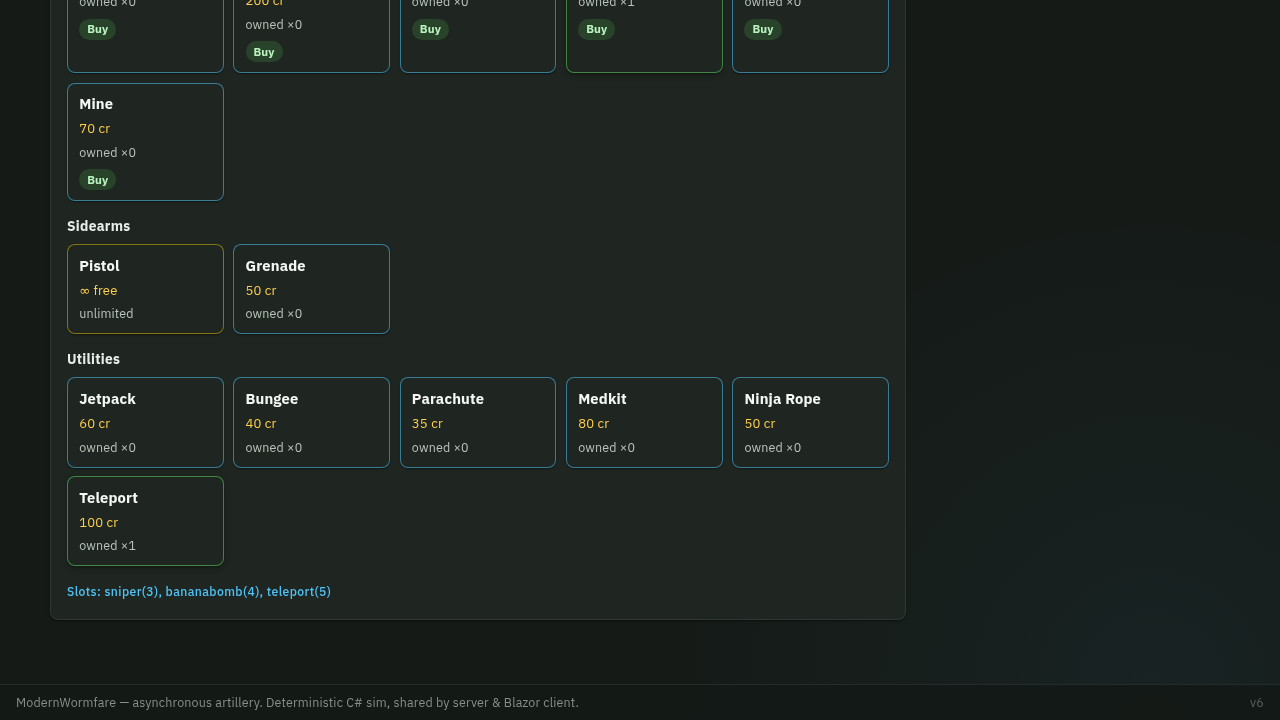

Loadout guest — 5. Guest loadout — Sniper + Banana Bomb + Teleport (4487cr)

Game start — 6. Match begins — net's turn, unit 1/3, recording armed

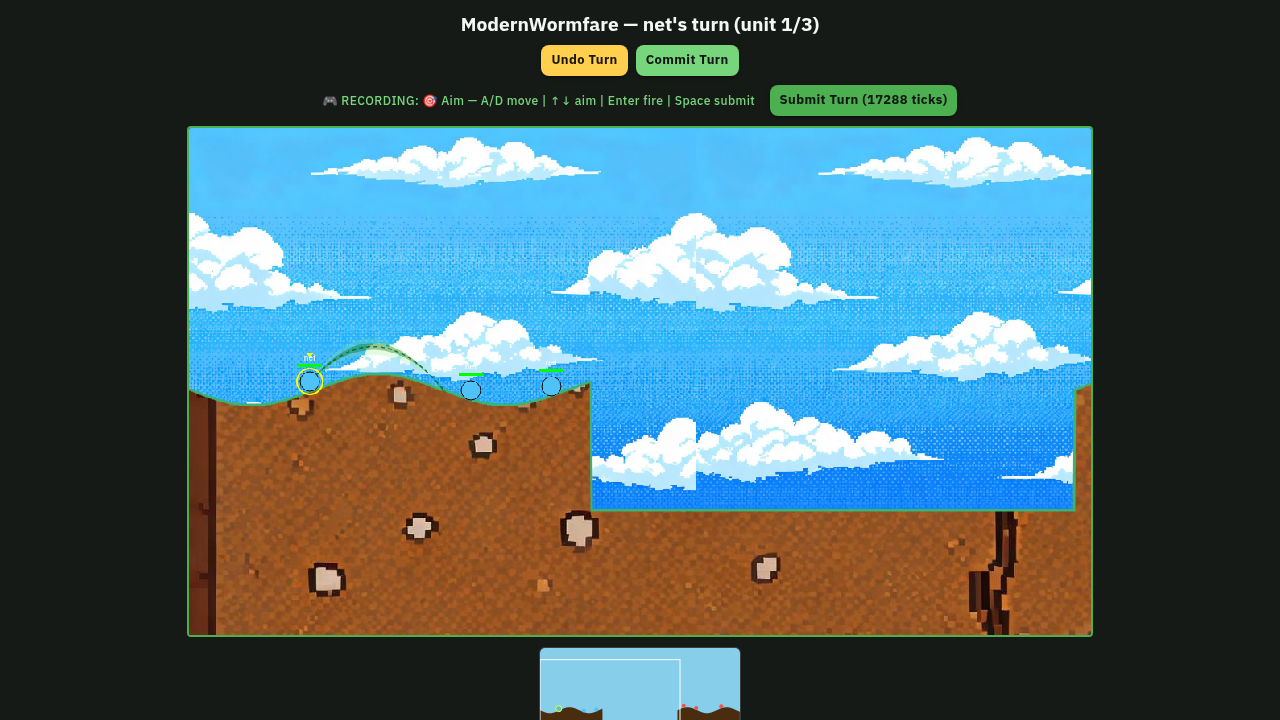

Turn 1 aim — 7. Turn 1 — Rocket aimed at 45°, power 530, recording 16k+ ticks

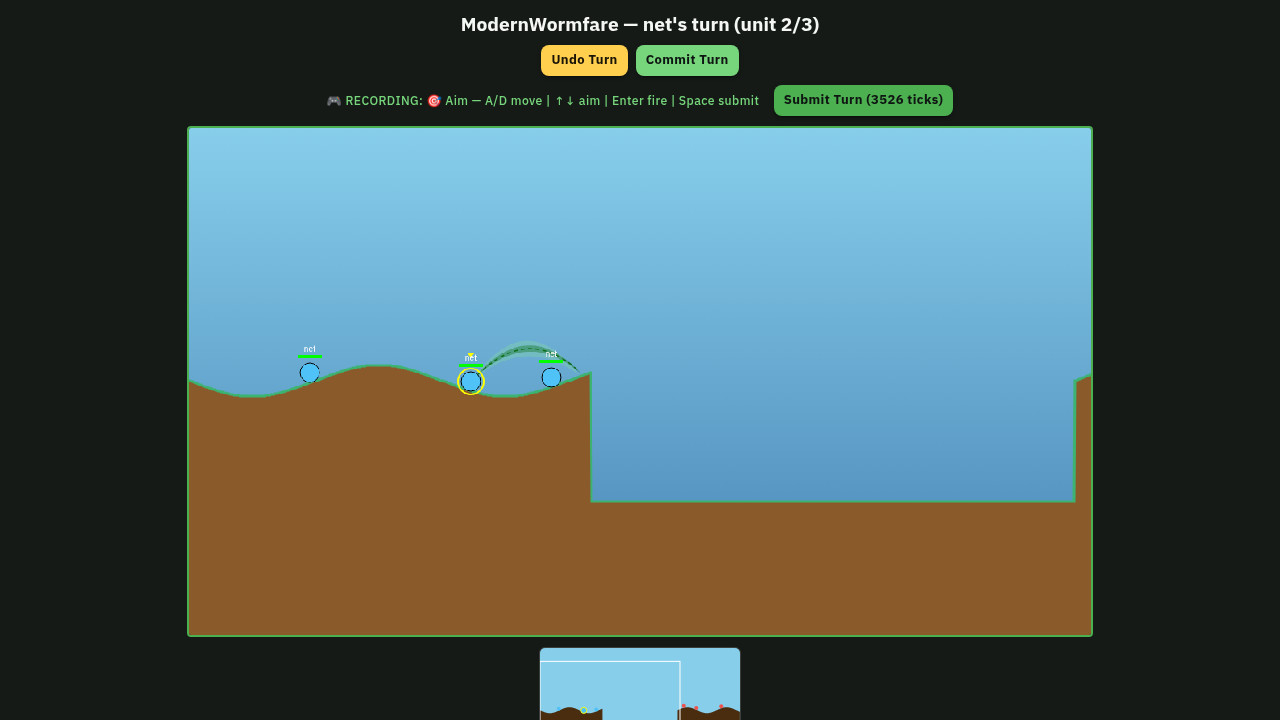

Turn 2 recording — 8. Turn 2 — Shotgun selected, recording continues (unit 2/3)

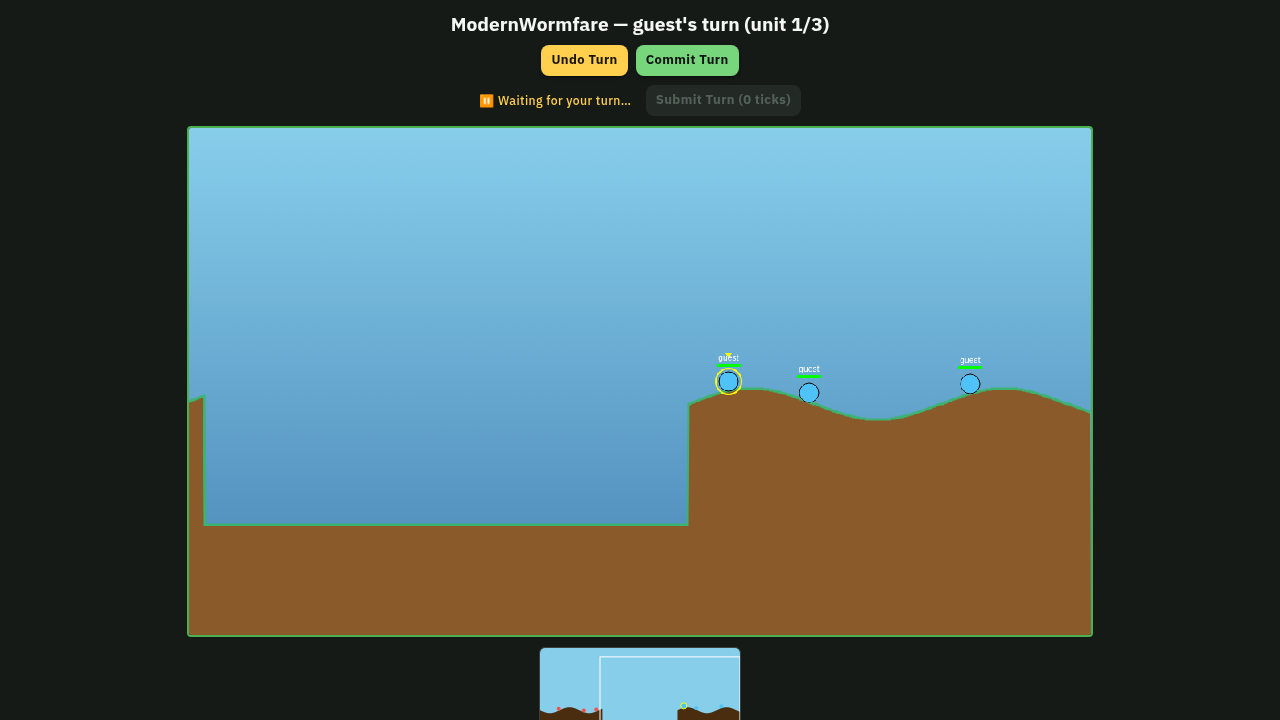

Turn passed to guest — 9. Turn rotated to guest (unit 1/3) — host now "Waiting"

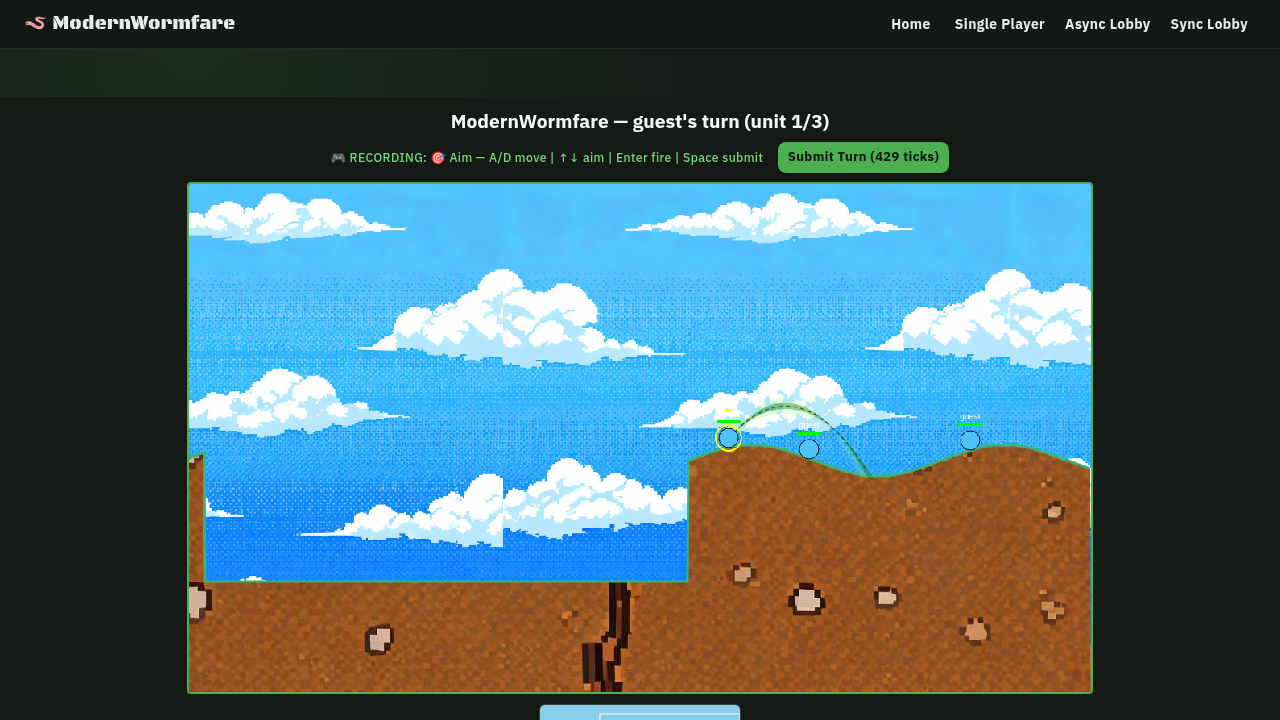

Guest turn — 10. Guest's perspective — their loadout, their funds, recording armed

11. Admin toolbar (Undo / Commit) visible only to player "net"

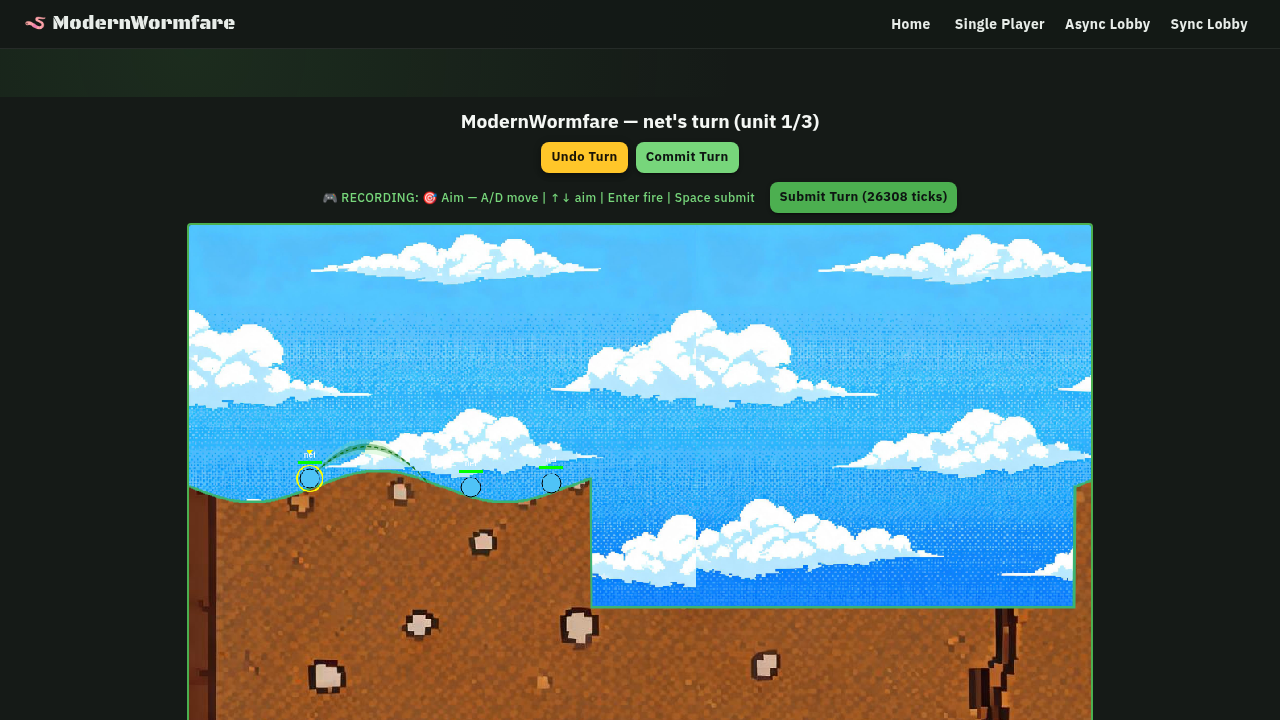

Admin undo — 12. Admin Undo clicked — last turn rolled back (success=True)

13. Replay playing back after a committed turn (⏳ status)

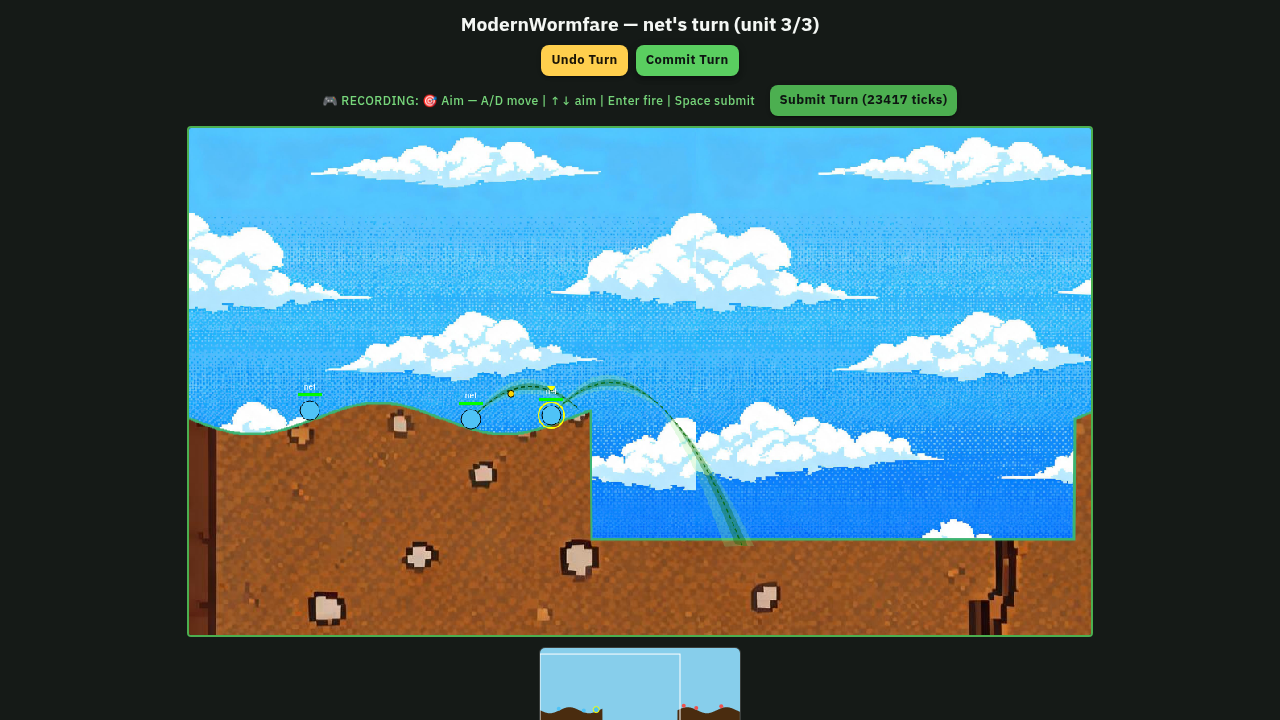

Game state — 14. Post-commit game state — next unit armed for recording

Report

Environment: .NET 10.0.301, dev server on port 5080, zero sudo. Two independent browser tabs simulated two human players on separate SignalR connections.

Features exercised

1. Lobby create + join — PASS

Host (net) opened the Async Lobby, set name/race/map, clicked Create Game. Server created an Async-mode game and listed it.
Second player (guest) saw the open game in a separate tab, set name/race, clicked Join. Players column updated to net, guest on both clients.
Screenshots: 02-lobby-create.png, 03-lobby-join.png.

2. Loadout + economy (two players) — PASS

Both started with 4837 credits. Host bought Shotgun (80) + Cluster Grenade (110) + Ninja Rope (50) = 4597cr left. Guest bought Sniper (120) + Banana Bomb (130) + Teleport (100) = 4487cr left.
Roster panel synced across both clients. Host-only Begin Match button (async requires explicit start). Clicking it moved both players to the game page.
Screenshots: 04-loadout-host.png, 05-loadout-guest.png.

3. Turn recording + batch submission — PASS (caveat: issue #1)

Active player's client shows 🎮 RECORDING, accumulates one BatchTick per animation frame (~60 Hz). A/D move, ↑↓ aim, Enter fire, Space submit.
Submit Turn (N ticks) sends a TurnActionBatch over SignalR. 6 turns accepted:

#	Player	Unit	Weapon	Ticks	Accepted
1	net	1/3	Rocket	3350	✓
2	net	2/3	Shotgun	4463	✓
3	net	3/3	Cluster Grenade	5929	✓
4	guest	1/3	Sniper	484	✓
5	guest	2/3	Banana Bomb	2763	✓
6	guest	3/3	Rocket	153	✓

After each submit, the server simulated the batch deterministically and broadcast a TurnReplayed event; the client played back replay frames (⏳ Replay playing…) then armed the next unit.

4. Turn rotation across players — PASS

Turns rotate one unit at a time: net u1 → net u2 → net u3 → guest u1 → guest u2 → guest u3 → net u1 (round 2).
Inactive client shows ⏸️ Waiting for your turn… with a disabled submit button.
After guest's unit 3, the turn correctly cycled back to net (unit 1/3) — full round-trip confirmed.
Screenshots: 09-turn-passed-to-guest.png, 10-guest-turn.png.

5. Admin undo / commit moderation — PASS

The net player (admin) sees an extra toolbar with Undo Turn / Commit Turn. Non-admin (guest) does not.
Undo: server logged AdminUndo: success=True; last committed turn rolled back.
Commit: submitted a turn, clicked Commit → server logged AdminCommit: admin=net; turn finalized, next unit armed, replay played.
Screenshots: 11-admin-toolbar.png, 12-admin-undo.png, 13-replay-playing.png, 14-game-state.png.

6. Per-player state isolation — PASS

Each client saw its own funds (net 4597cr, guest 4487cr) and its own loadout in the action bar.
HUD showed the correct active player name and unit index on both clients.

Known issues found

1. Large turn batches exceed the 2 MiB SignalR limit NOTE / robustness FIXED

Three submissions were rejected because the serialized TurnActionBatch exceeded SignalR's MaximumReceiveMessageSize (2 MiB, set in Program.cs):

Attempt	Ticks	Result
1st	26176	Connection closed — message size exceeded
2nd	21403	Connection closed — message size exceeded
3rd	8998	Connection closed — message size exceeded

Successful batches ranged 153–5929 ticks. Recording accumulates one tick per animation frame (~60 Hz), so a turn held open ~2.5 min (idle aiming / slow interaction) produces ~9000 ticks and trips the limit.

Fix: Added MaxRecordedTicks = 5000 cap in MultiplayerGame.razor.cs. The client auto-submits when the cap is reached (~83s at 60 FPS), keeping the batch under ~1.5 MiB. Regression test in TurnRecordingCapTests.

2. Loadout roster funds display lag MINOR FIXED

The shared "Players" roster panel sometimes showed a player's pre-purchase funds for a beat after buying. Cosmetic sync-timing issue, not a data bug.

Fix: BuyItemAsync, SellItemAsync, and ReorderLoadoutAsync in Loadout.razor.cs now call StateHasChanged() immediately after the hub call completes.

3. Client recording state not cleared after admin undo MINOR FIXED

After Undo Turn, the server rolled back the turn but the client kept showing 🎮 RECORDING with a stale tick count.

Fix: Added AdminActionDto to GameDtos.cs, wired an OnAdminAction event in GameHubConnection.cs, and registered a handler in MultiplayerGame.razor.cs that clears _turnTicks and re-arms recording on undo. Regression test in TurnRecordingCapTests.

Conclusion

The async PvP loop works end-to-end: lobby → loadout → turn recording → batch submission → deterministic replay → turn rotation across both players → admin undo/commit. All three issues found in this run have been fixed: the turn-batch size cap prevents SignalR disconnects, admin undo now clears client recording state, and loadout purchases update the display immediately.
